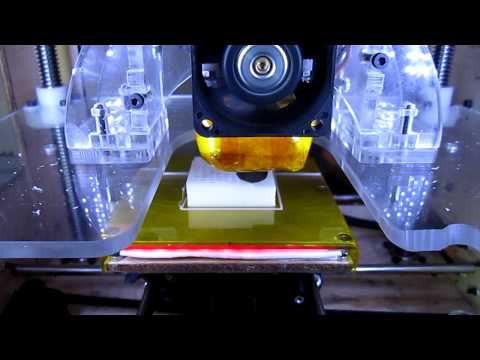

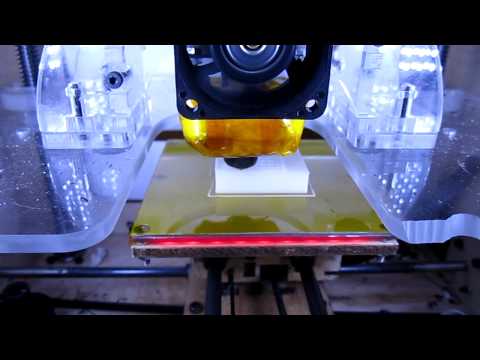

Here is my take on merging the lowrider and the mendel inspired y carriage for the cupcake. link to bearings:vxb.com/page/bearings/PROD/3mm/623ZZ10-1 I went with smaller bearings than the Mendel because it allowed me to do everything with M3 screws and it allowed me to drop the height a bit. This design is shorter than the standard platform by 10mm, I was pushing for more, but the bearings killed the height gains. It does mean that you can gain back about half of the height that you loose by putting in the automatic build platform. Also, the y rails have been separated to 70mms so hopefully that means that the platform is a bit more stable. I attached the solidworks file for people who want to play (WARNING - the file is messy and I was bad and made all of my parts in one part file). If you would like any other formats like .igs, .step and the like, just shout. Should have all of the holes teardropped later today. - Truncated teardrop holes are up, that's a pain. Update: The stl files from solidworks would not slice in Rep G, I have no idea why, if you know please tell me. I reuploaded all of the stl files and tested them in Rep G 19 they seem to work but I will not have a chance to print until Monday. I have all of the parts, now on to the debug... so you do not have to... The updated files are in the zip file, I got rid of the first generation of parts. Things were moved around a bit and these are the updates after printing round one and putting it into the makerbot. I should have all of the gen 2 parts printed and through debug tomorrow. Update 2 - I got the bearings in and other that a few "What the hell was I thinking..." moments that were easily repaired with an X-acto knife, everything went great. I'm in the process of printing the gen 3 parts and everything should be cool now. I'll post pictures and video once the final draft is printed. Update 3 - In process of using gen 3 platform to print gen 4 platform. Once I have printed and assembled it, I will upload files. I think that will be it for variations. Update 4 - Gen 5 files are out and I can now say you can download them and print! Update 5 - Instructions are up. Update 6 - I just uploaded the gen 7 version - I have not had a chance to print it yet, I was getting annoyed with the slight curve in my heat spreader and decided to rip it apart and lap it until it was flat. This update addresses: Adding nut pockets on all adjusting screws for bearing tension to make adjusting easier (do not have to hold nut in place) Back X bearings cluster has been reworked so the is less interference with the X pulley. Back X bearing adjustment screw head has been nested into the plastic to have less interference with X belt. Interference between Y belt attachment nuts and plastic bodies has been addressed X belt attachment point has been lowered. First shot at integrating endstops have been added. I think that that is about it. I will shout when the directions have been updated, everything should be the same except the endstop part. If you have already printed this and do not want to reprint, reprint parts 09 and 16, those have to do with X belt and pulley issues. (and they are small) I just sent out the third package of nuts, washers, and screws. If anyone else wants them, just message me. Gaffertape kindly updated the files so if you are using the older repG and skeinforge, use the resaved gen 7 files. Update: Finally updated for mechanical endstops, instructions still need to be updated though.
